FM12C

High Performance Floor Monitor
SKU: PLU-FM12C
Plus Audio FM12C
SKU: PLU-FM12C

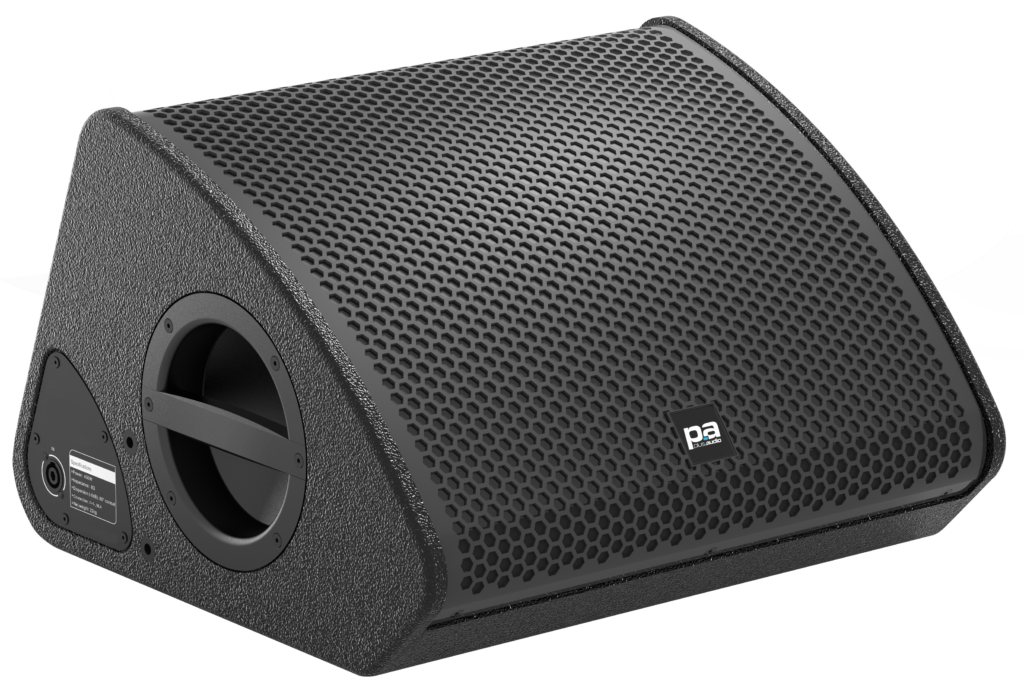

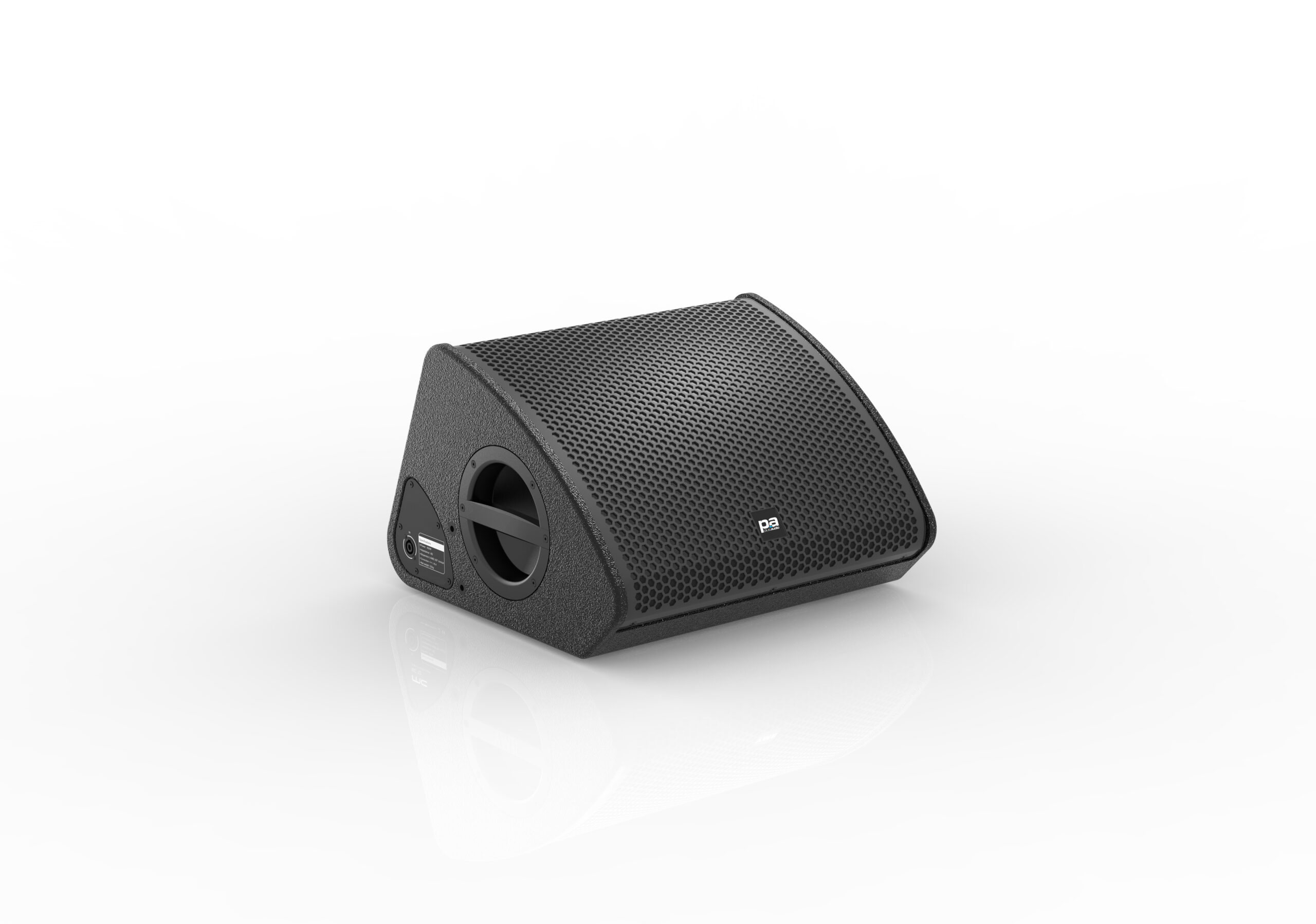

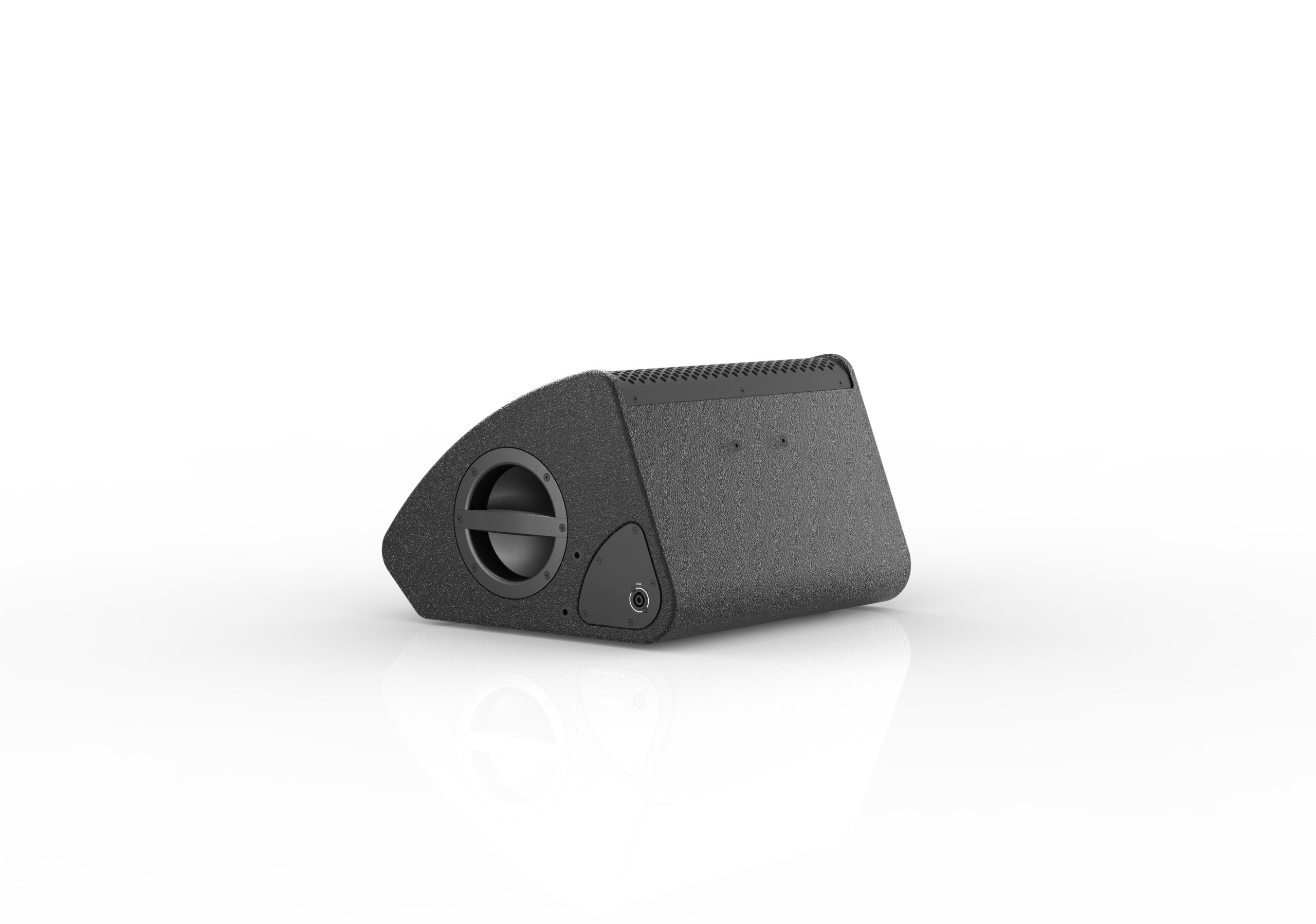

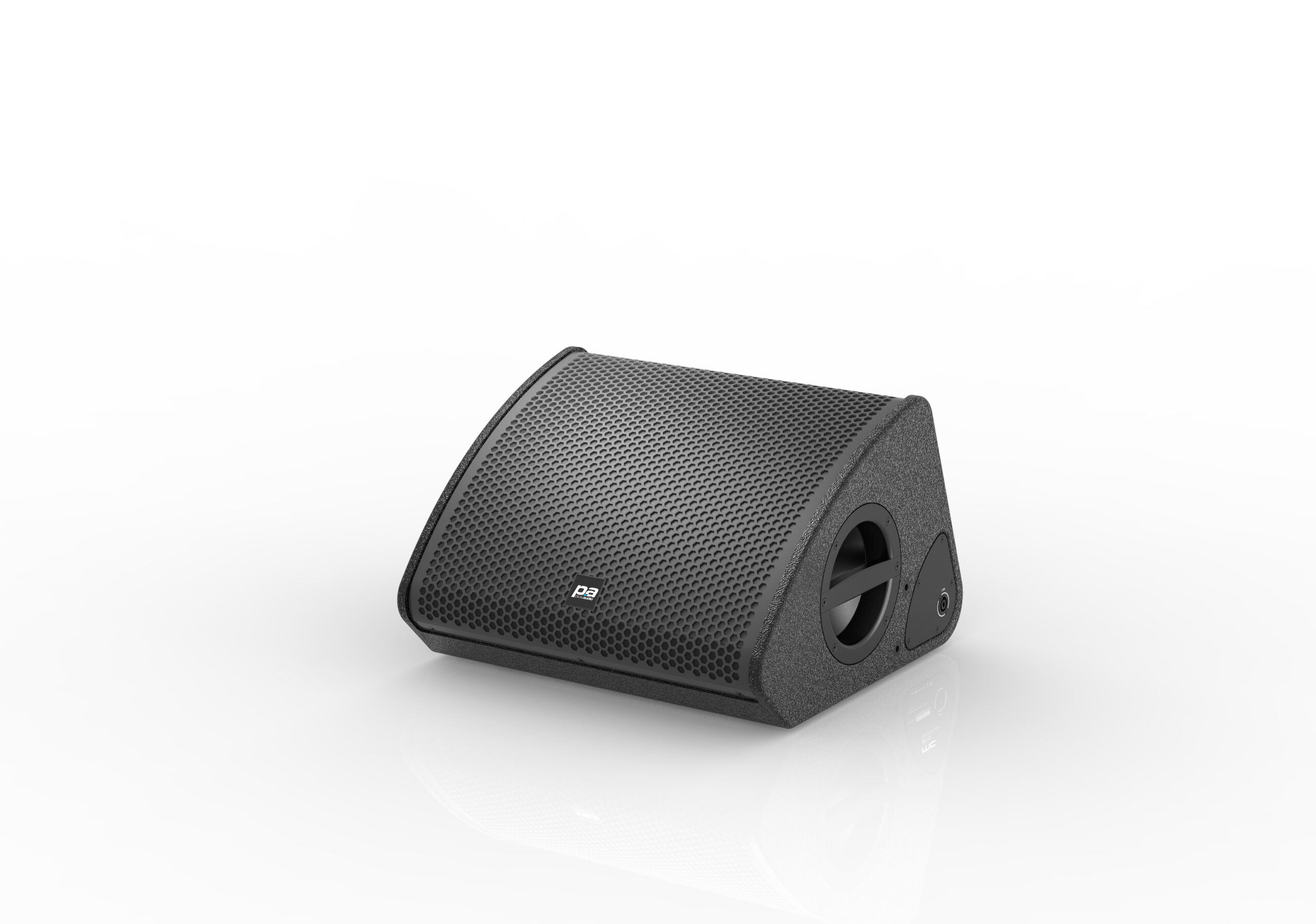

The FM12C is a 2-way high-performance floor monitor, ideal for demanding live sound environments, ensuring that every detail of the performance is heard clearly. It features a 12” LF driver with a ferrite magnet and a 1.75” HF compression driver with a neodymium magnet. This configuration provides a powerful low-end response and clear, articulate high frequencies. The monitor offers a consistent 80° x 80° (h x v) nominal dispersion, delivering precise and even coverage on stage.

Equipped with multiple M8 rigging points and a pole mount, the FM12C allows for versatile positioning, whether on stage or in a more permanent installation. Connectivity is straightforward and reliable, with 2x Neutrik NL4MP connectors and a 1+1- wiring configuration.

The FM12C’s enclosure is constructed from durable 15mm multilayer birch plywood, finished with a rugged black polyurethane paint that withstands the wear and tear of frequent use. The front of the loudspeaker cabinet is protected by a rigid steel mesh grille with an acoustically transparent cloth.

  • Components 12″/1″
  • Dispersion 80° x 80°
  • SPLmax 96 dB
  • Weight 22 kg
Frequency Response 55Hz ~ 18kHz (±3dB)
45Hz ~ 20kHz (-10dB)
Components Low Driver Low: 1 x 12″ driver with ferrite magnet
Components Hi Driver Hi: 1 x 1.75″ (1″ comp driver) with neodymuim magnet
Nominal Dispersion (-6dB) 80° × 80°
Nominal Impedance
Sensitivity (@1w / 1m) 96dB
Power Rating(AES) 450W
Maximum SPL 122dB SPL, 128dB Peak
Weight 515 x 343 x 492mm
Dimensions (H x W x D) 22kg
Rigging M8 x 6, Pole Mount
Connector 2x Neutrik NL4MP
Connection Method 1+1-
Enclosure 15mm Multilayer Birch Plywood
Finish Black polyurethane paint
Grille Black steel mesh with acoustic transparent cloth
