FS209L

High-Performance Loudspeaker
SKU: PLU-FS209L
Plus Audio FS209L
SKU: PLU-FS209L

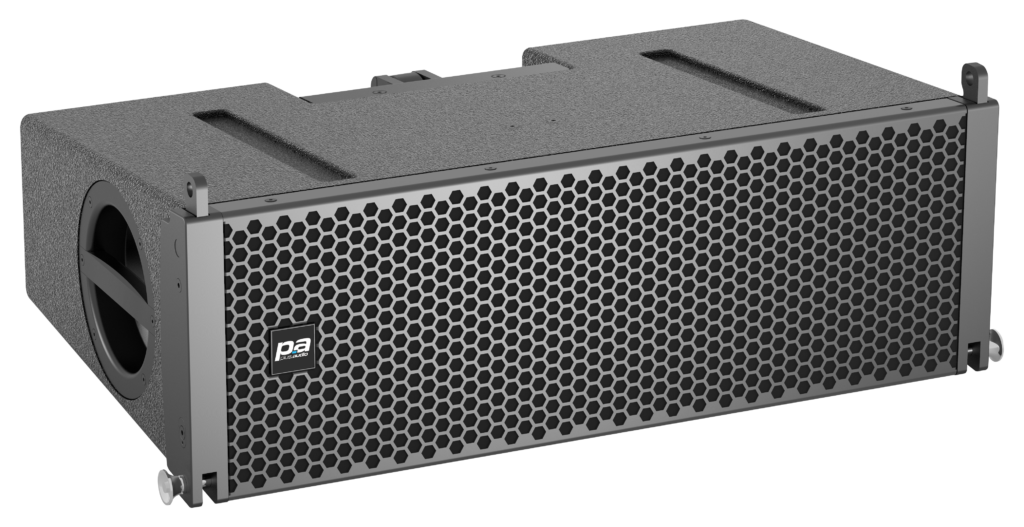

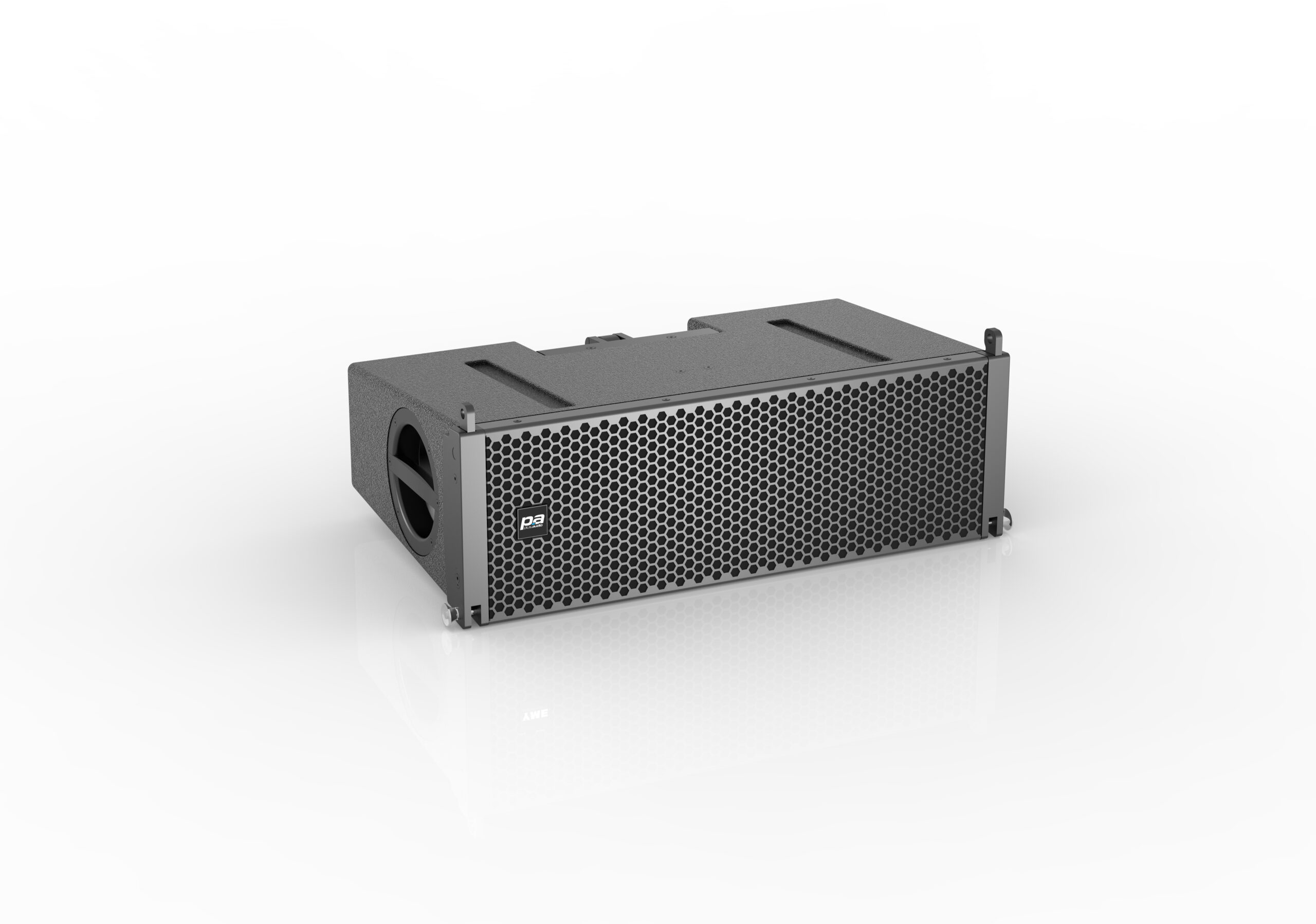

The FS209L by Plus Audio is a medium-sized line array system designed for the live event industry. It features a two-way single-driver design with neodymium magnets for high sensitivity, compact size, and lightweight. The system has two 1.4-inch titanium tweeters on a special waveguide.

Additionally, two 9-inch woofers with 65mm voice coils are placed on each side of the LF driver, ensuring smooth frequency response and consistent 100° coverage. The speaker box is made from high-quality birch and coated with durable polyurethane for protection against impacts and weather.

  • Components 2x 9″
  • SPLmax 137dB
  • Dispersion 100°
  • Weight 30kg
Frequency Response 60Hz ~ 18kHz (-10dB )
Sensitivity (@1w / 1m) 112dB
Nominal Impedance
Power Rating(AES) 800W
Components Low: 2 x 9″ driver with neodymuim magnet
Hi: 2 x 1.75″ (1.4″ comp driver) with neodymuim magnet
Nominal Dispersion (-6dB) 100° × 10°
Maximum SPL 137dB
Weight 30kg
Dimensions (H x W x D) 287 x 772 x 450mm
Connector 2 x Neutrik NL4MP
Connection Method 1+1-
Enclosure 15mm, 18mm Multilayer Birch Plywood
Finish Black polyurethane paint
Grille Black steel grille with acoustic foam
