MPS12A

High-Performance Loudspeaker
SKU: PLU-MPS12A

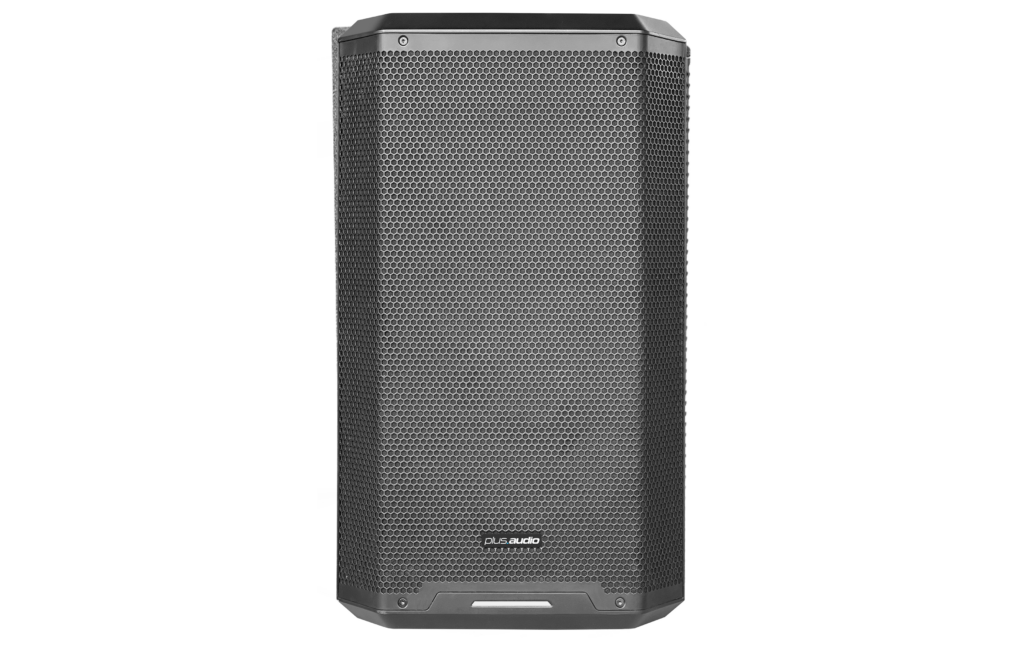

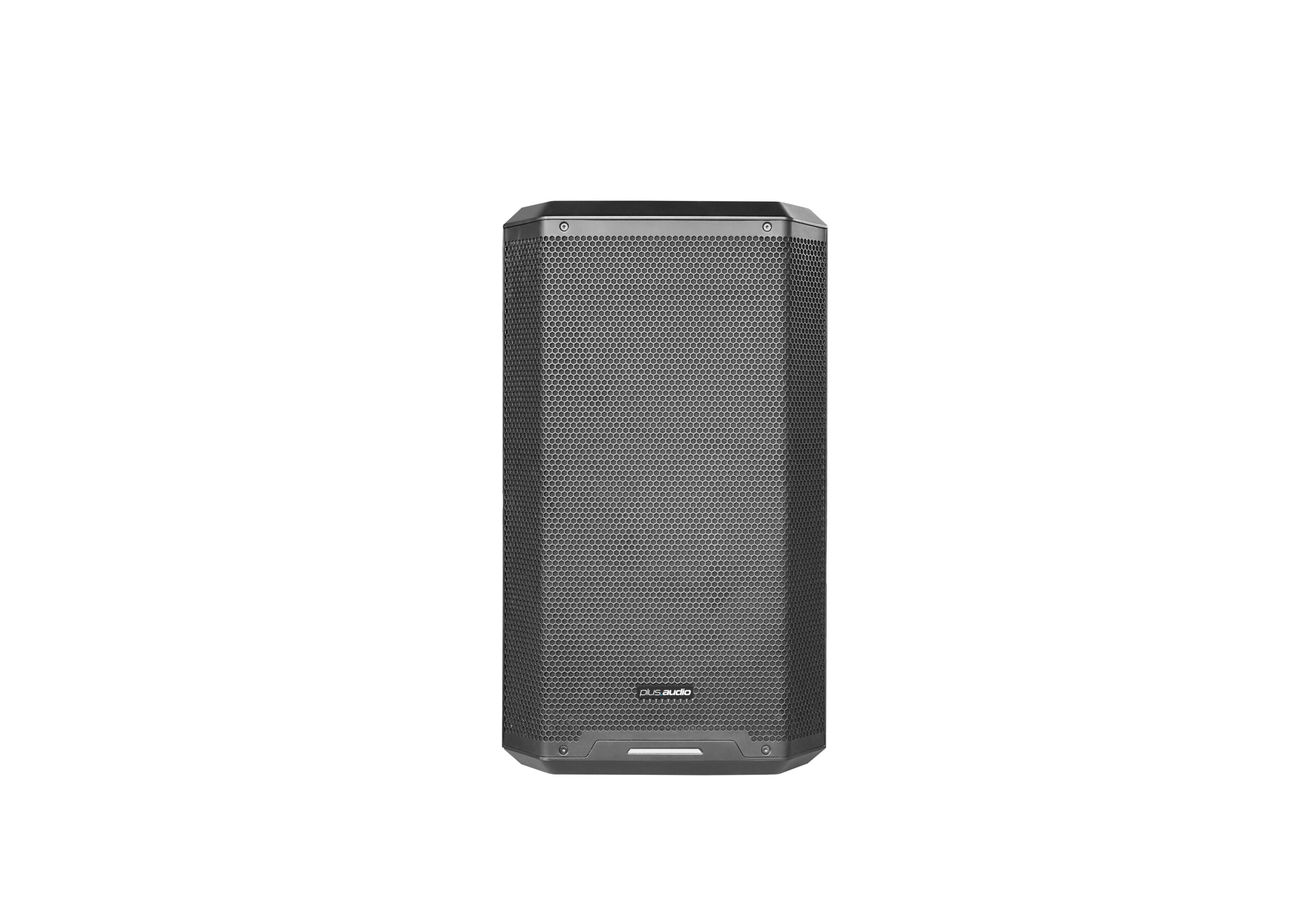

Plus Audio MPS12A (Hero2)
SKU: PLU-MPS12A

The Plus Audio MPS12A is a high-performance multipurpose point source loudspeaker, designed for versatile applications where clarity and durability are paramount. Ideal for live sound, installations, and mobile use, it features a sleek, injection-moulded cabinet that enhances rigidity and strength by 20%, ensuring durability and consistent performance.

Key Features:

  • Powerful Output: With a peak power of 2000W, the MPS12A delivers robust audio performance, making it suitable for a range of demanding environments.
  • Advanced Driver Technology: Equipped with a high polymer diaphragm compression driver offering superior high-frequency clarity and transparency compared to traditional titanium diaphragm tweeters.
  • Flexible Connectivity: Includes Bluetooth™ audio input with True Wireless Stereo (TWS) functionality, and 2 balanced combo XLR inputs and an XLR output for versatile integration.
  • Efficient Amplification: Utilizes lightweight, Class D amplification for quiet, fanless operation, while 4-band parametric EQ on the XLR channel allows for precise audio tuning.
  • Intuitive Control: An Android and iOS app provides remote control capabilities via Bluetooth, while a 2.4-inch colour LCD screen offers comprehensive DSP feature access including ducking, speaker location presets, bass and treble shelving EQ, 4-band parametric EQ on the analog inputs and 100 meters of delay for precise time alignment.

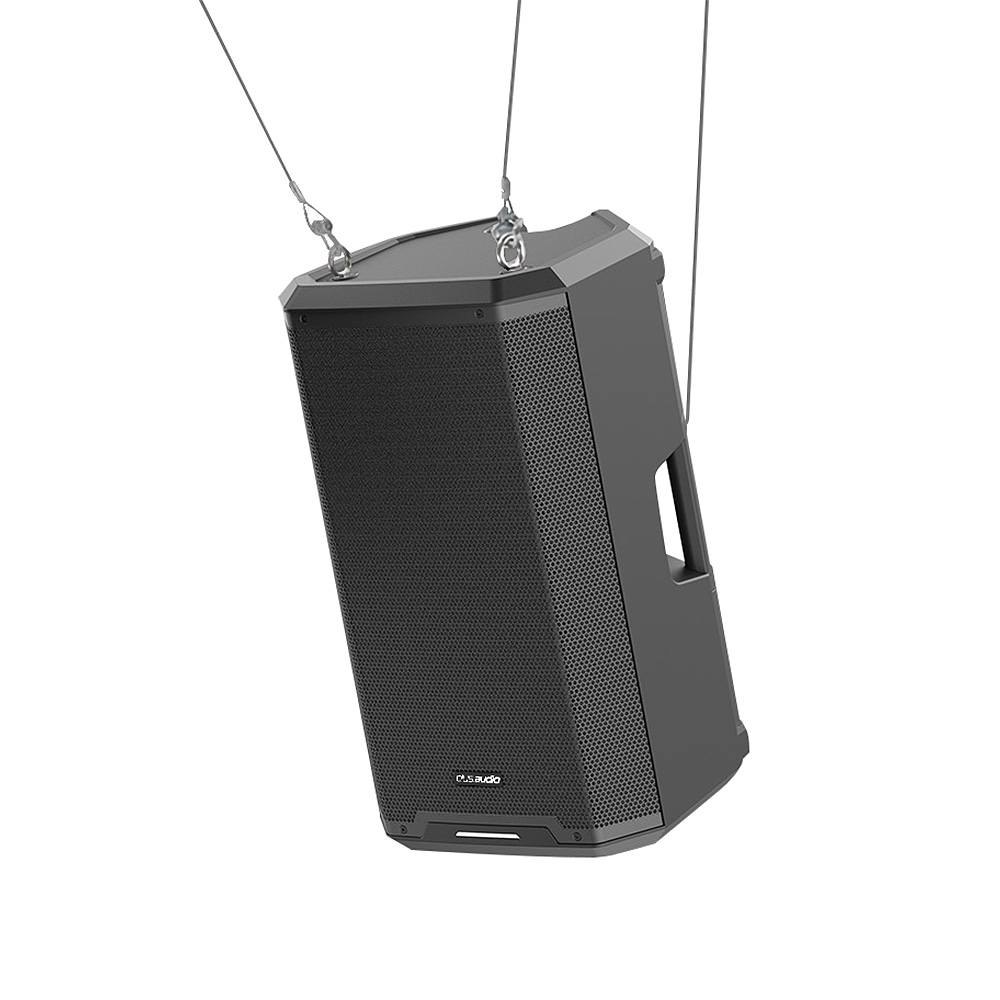

  • Coverage and Mounting: Offers a 90° x 70° coverage pattern and features a 35mm pole socket along with three M10 suspension points for flexible mounting options.

The MPS12A combines advanced technology and robust build quality, providing a reliable solution for professional audio applications.

  • Components 1 x 12″ LF driver, 1 x 1.35″ comp driver
  • SPLmax 129dB
  • Dispersion 90° x 70°
  • 2.4″ Colour Display
  • Weight 16.9kg
Max. SPL 129dB
Frequency response 50 Hz – 20 kHz
Power 1000W (RMS) / 2000W (Peak)
Amp type Class D
Low-/mid speaker 12”
HF driver 1.35”

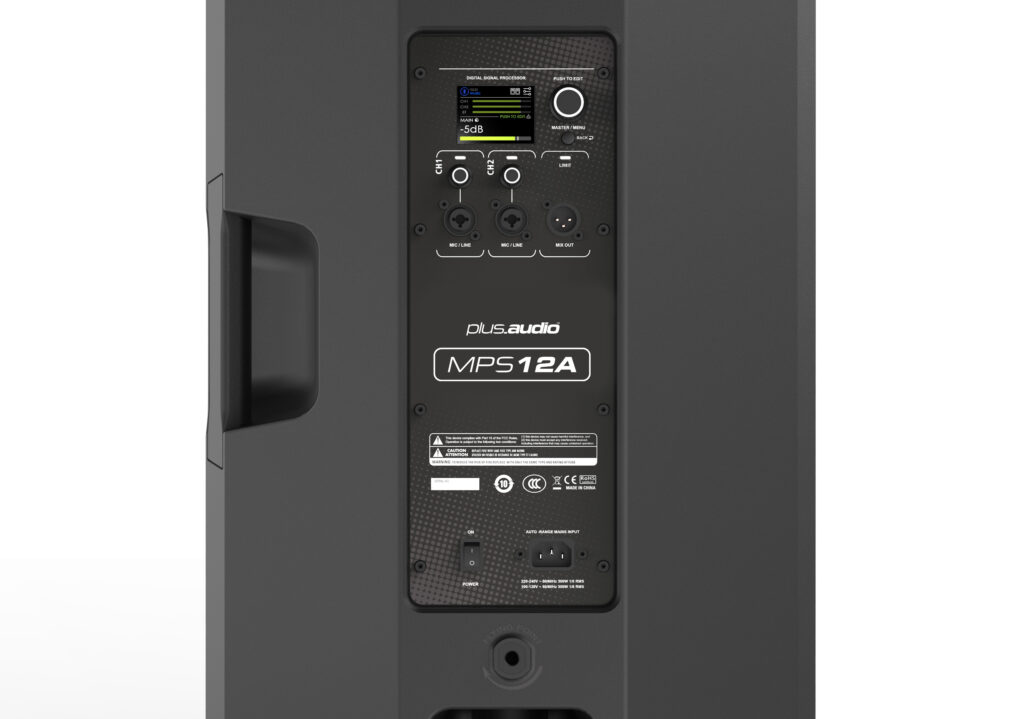

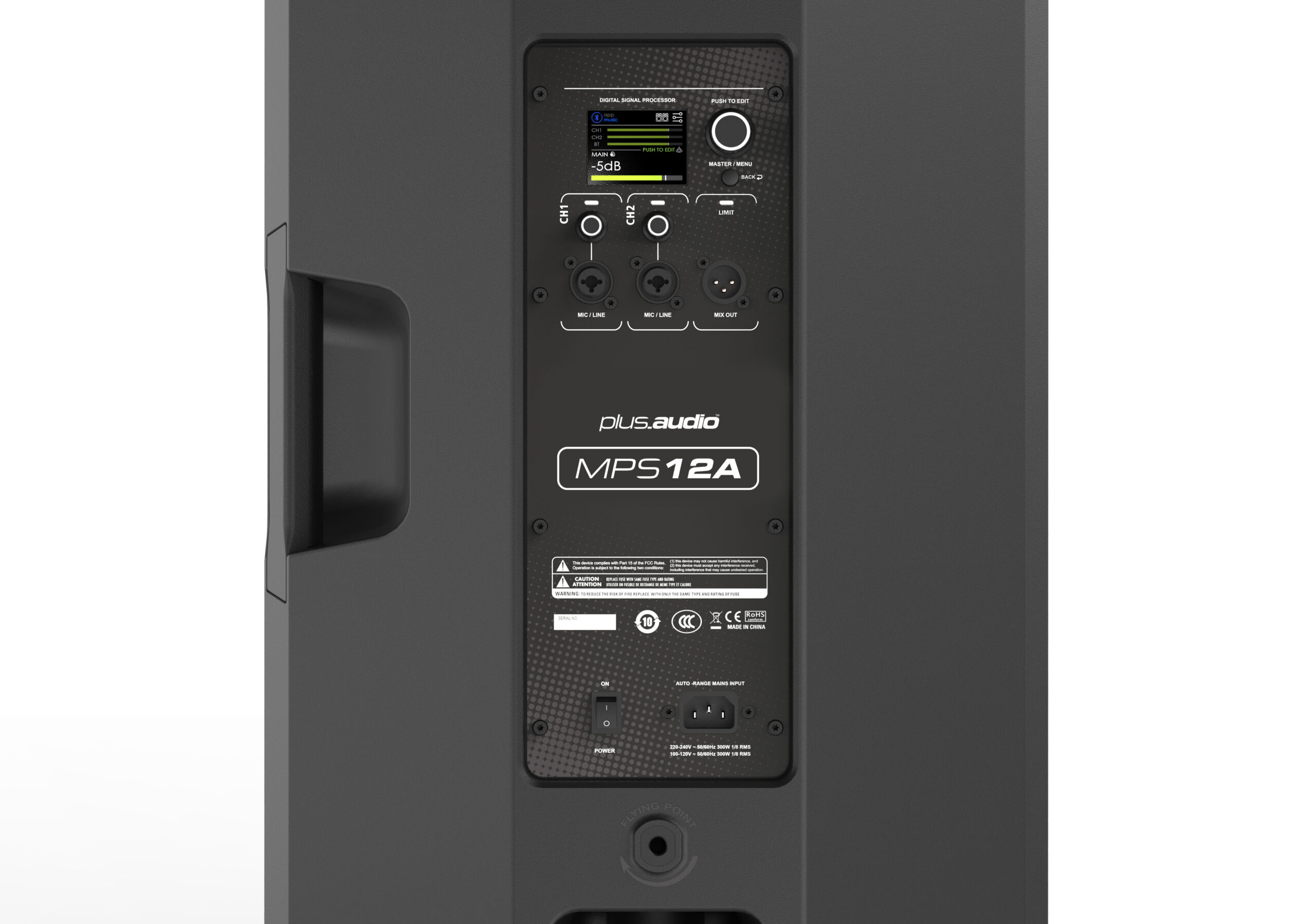

Analog inputs 2x Combo XLR
Analog outputs 1x XLR-F
Display 2.4″ colour display
DSP functions Master / channel volume and mute, 2-band shelving EQ, 4-band PEQ, low-cut filter 20-150hz, front LED (on/off/limit), delay, ducking.
Sound modes Live/Club/Speech/Flat

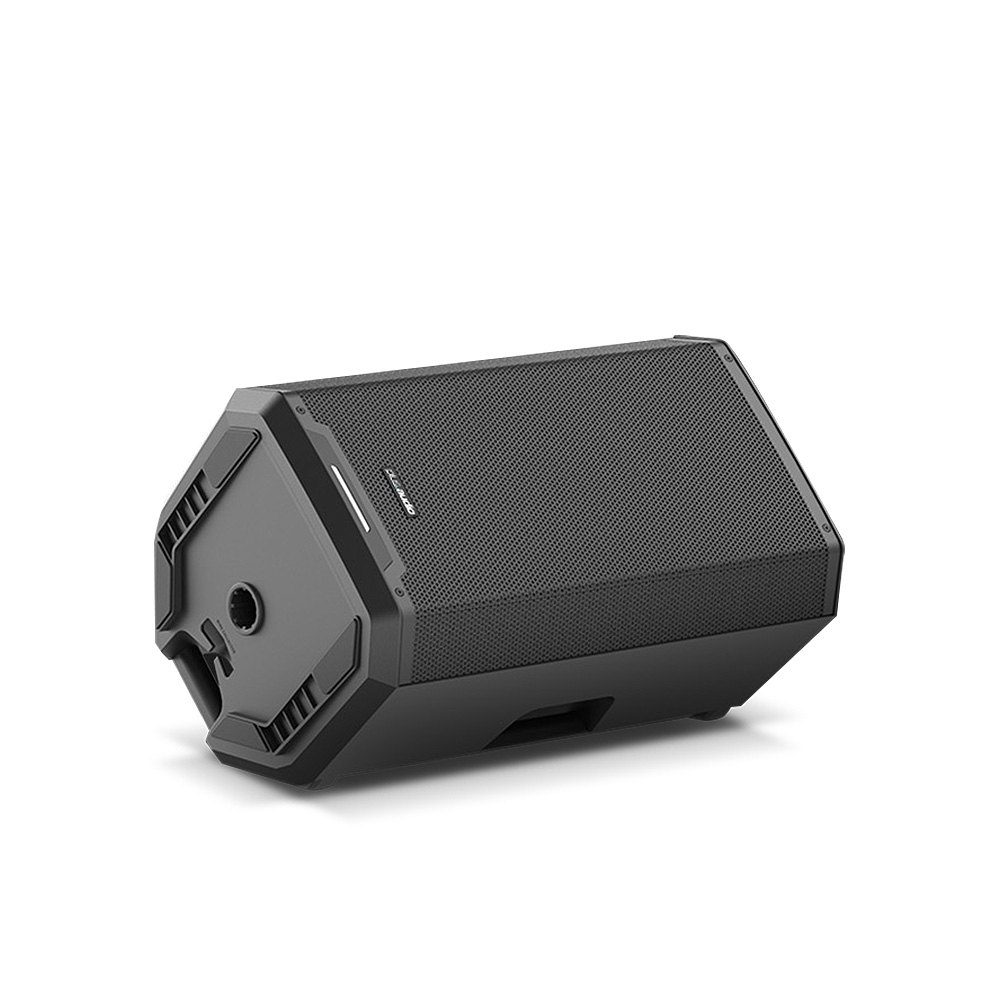

Setup modes Pole/Monitor/Bracket
Delay 0 -100m
Analog output modes Mix / Link includes Bluetooth™ pass-through
Bluetooth features Audio streaming with stereo linking and remote control for 2 speakers

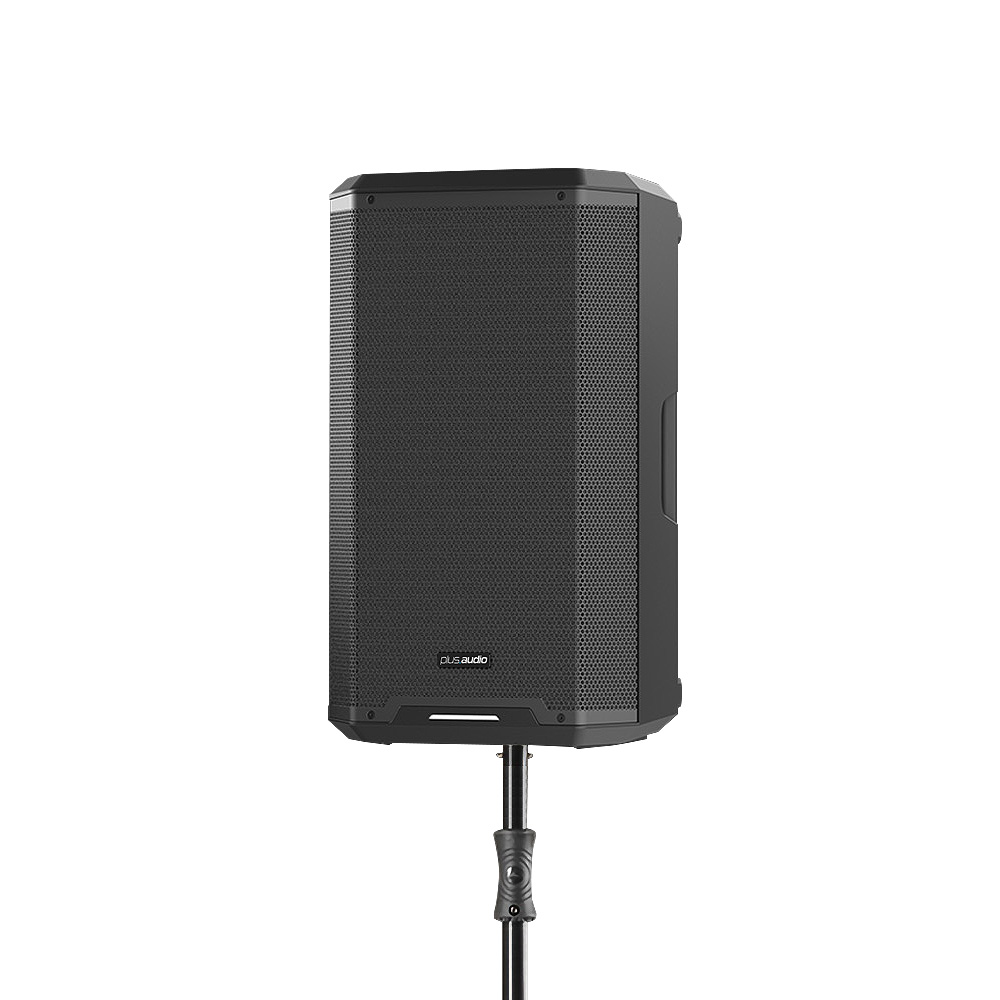

Pole mount 35mm mounting pole
Rigging points 3x M10
Power consumption 800W
Dimensions (WxHxD) 628 x 369 x 353 mm
Weight 16.9kg
